Simulating the performance of a PIN diode using Silvaco.

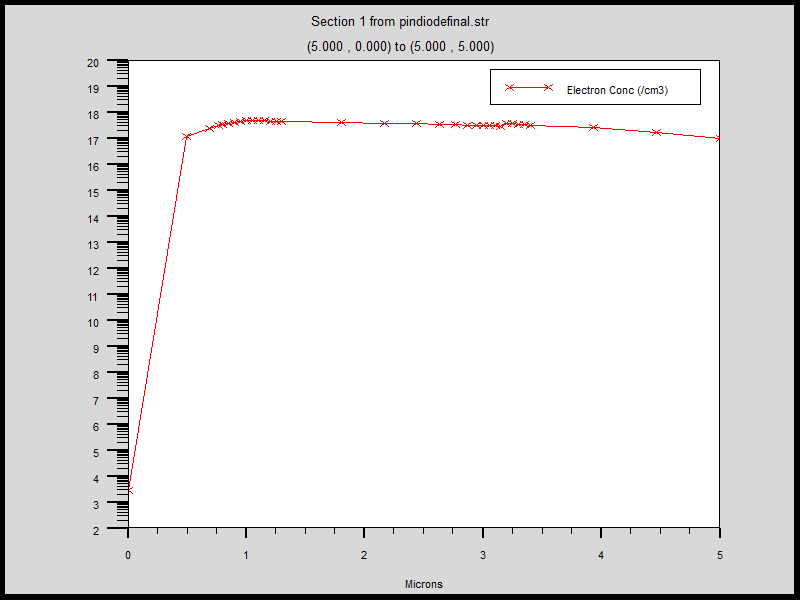

In this project, I tried to simulate the function of a PIN diode at different voltage and doped levels using Silvaco. I analyzed the effect of different variations in doping and voltages in the operation of this device by inspecting various plots, such as hole concentration and electric field. For example, in 10^17 doping and 4-volt voltage, some plots are shown below:
